Chaff Cutter 9ZR Series
Precision Silage & Fodder Cutting Machine
Engineered for high-volume feed processing with 9CrSi alloy steel blades, pure copper core motor, and quenched forged gears — built to deliver uniform, high-quality silage for livestock operations worldwide.
See the Chaff Cutter in Action
Watch how the Sunto 9ZR series processes corn stalks, straw, and green forage into uniform, high-quality livestock feed.
Built for Performance, Designed for Durability
The Sunto 9ZR Series chaff cutter is a versatile feed processing machine designed for farms and feed processing operations. It combines cutting and kneading functions in one unit, converting crop residues and green forage into palatable livestock feed.
With adjustable cutting lengths from 10mm to 30mm, this electric chaff cutter adapts to different feeding requirements for cattle, sheep, goats, horses, and other livestock. The robust construction ensures reliable operation even under demanding workloads.
9ZR Series Model Comparison
Three models to match your processing capacity needs — from small farms to commercial feed operations.
| Parameter | 9ZR-3 | 9ZR-4.5 | 9ZR-5 |
|---|---|---|---|
| Motor | 4HP Single phase | 5HP Single phase | 5.5HP Single phase |
| Capacity | 2000–3000 kg/h | 4000–5000 kg/h | 5000–6000 kg/h |
| Blades | 6 PCS | 5 PCS | 6 PCS |
| Size after cutting | 10–30 mm | 10–30 mm | 10–30 mm |
| Weight | 88 kg with motor | 134 kg with motor | 164 kg with motor |
| Package size | 1330×600×990 mm | 1640×620×1100 mm | 1750×620×1100 mm |
| HS Code | 84333000 | 84333000 | 84333000 |
* Parameters are for reference only. Custom specifications available upon request.
Sunto Chaff Cutter StructureComplete unit overview
9ZR Series Chaff Cutter — Complete Assembly
The fully assembled straw cutter machine features a compact footprint, integrated feed hopper, heavy-duty frame, and rear discharge outlet. Every component is precision-aligned at our factory for optimal cutting performance.
Core ComponentsPrecision-engineered parts that define quality

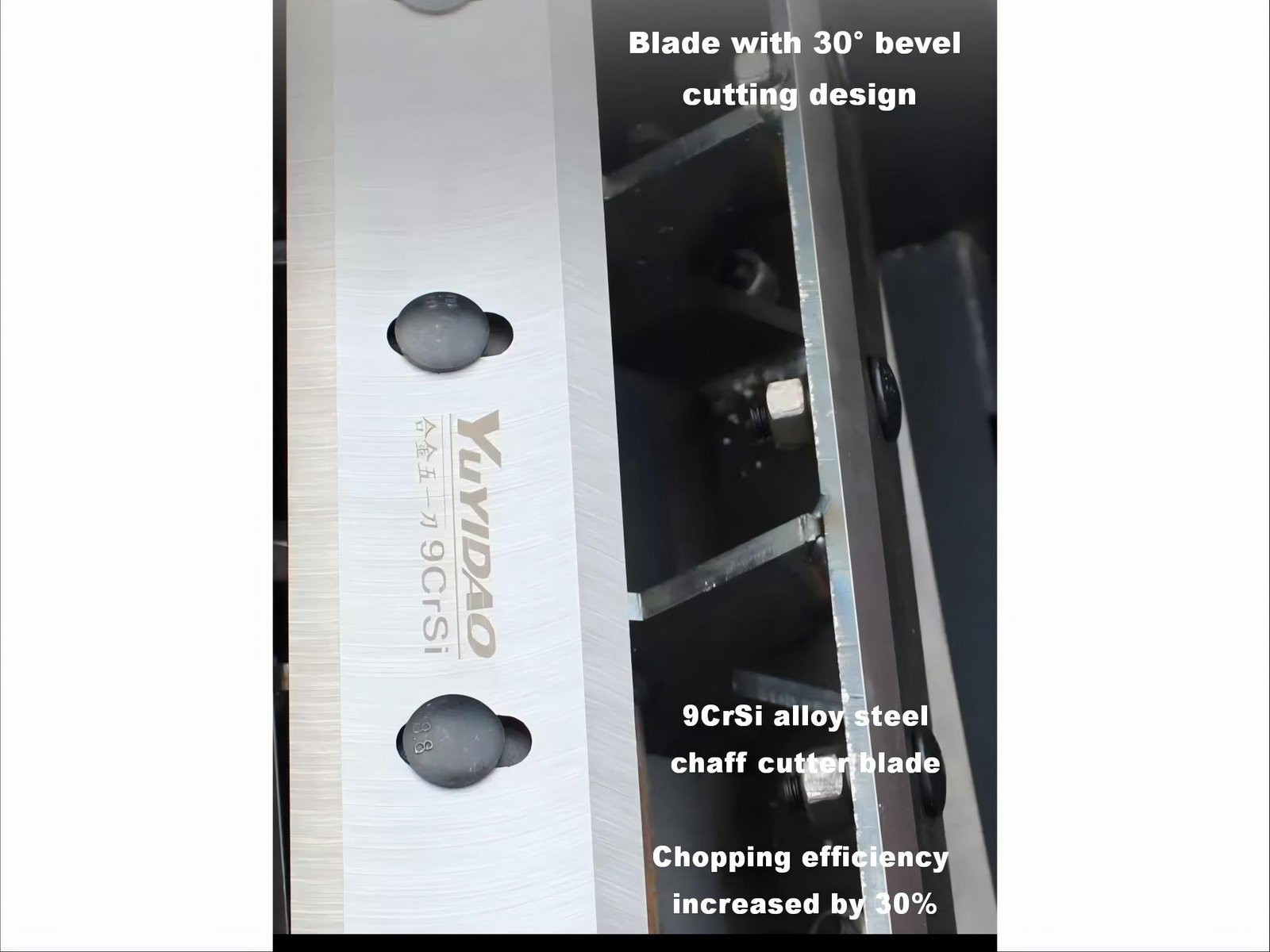

9CrSi Alloy Steel Chaff Cutter Blade
Forged from premium 9CrSi alloy steel with heat-treated edge hardening. Delivers clean, precise cuts with exceptional wear resistance, maintaining sharpness through thousands of hours of operation.

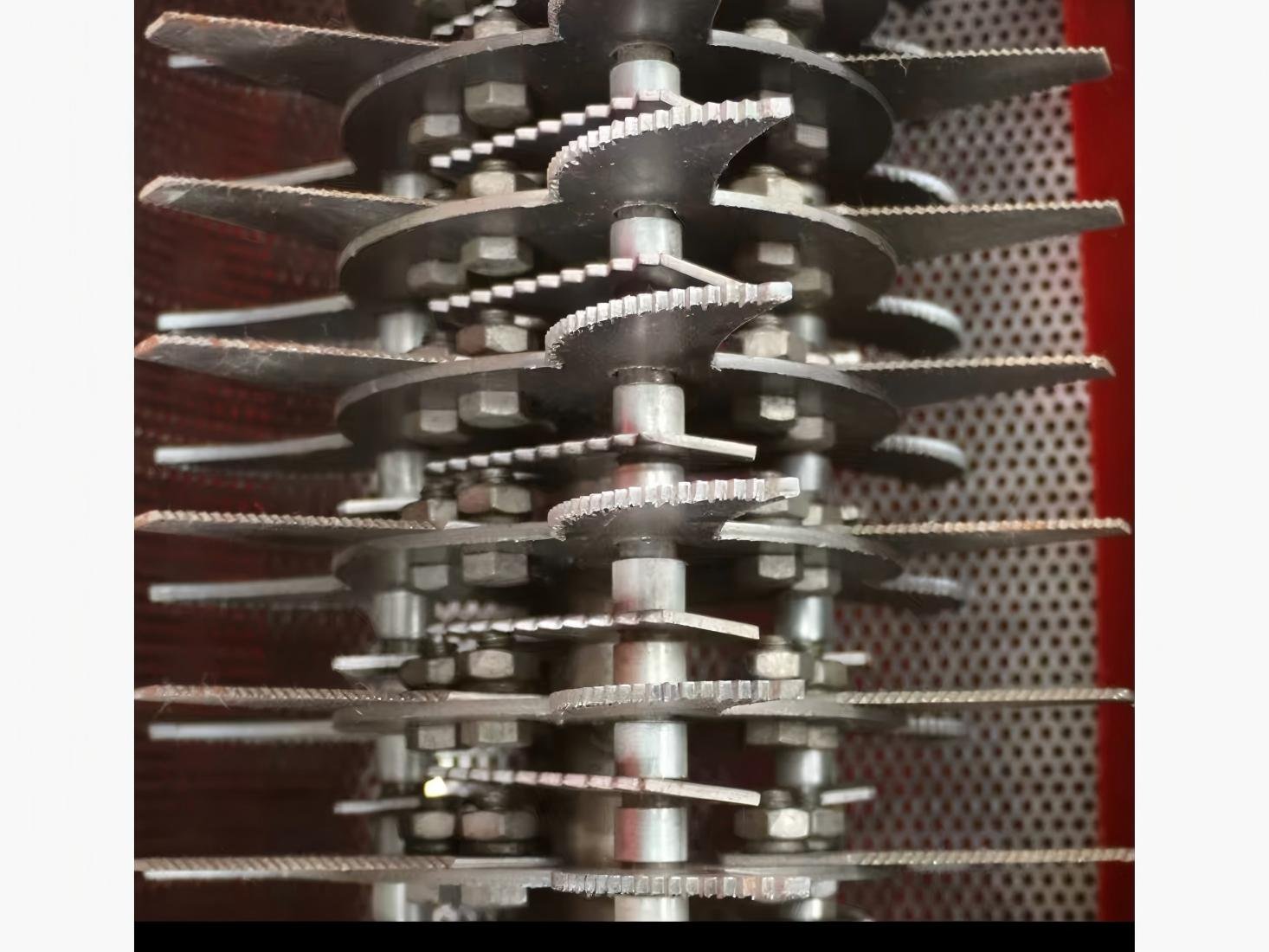

Laser-Cut Integrated Kneading Blade Disc + Hammer Blade
One-piece laser-cut construction eliminates assembly gaps and vibration. The integrated hammer blade system kneads stalks into soft, digestible fibers — improving feed palatability and livestock intake rates.

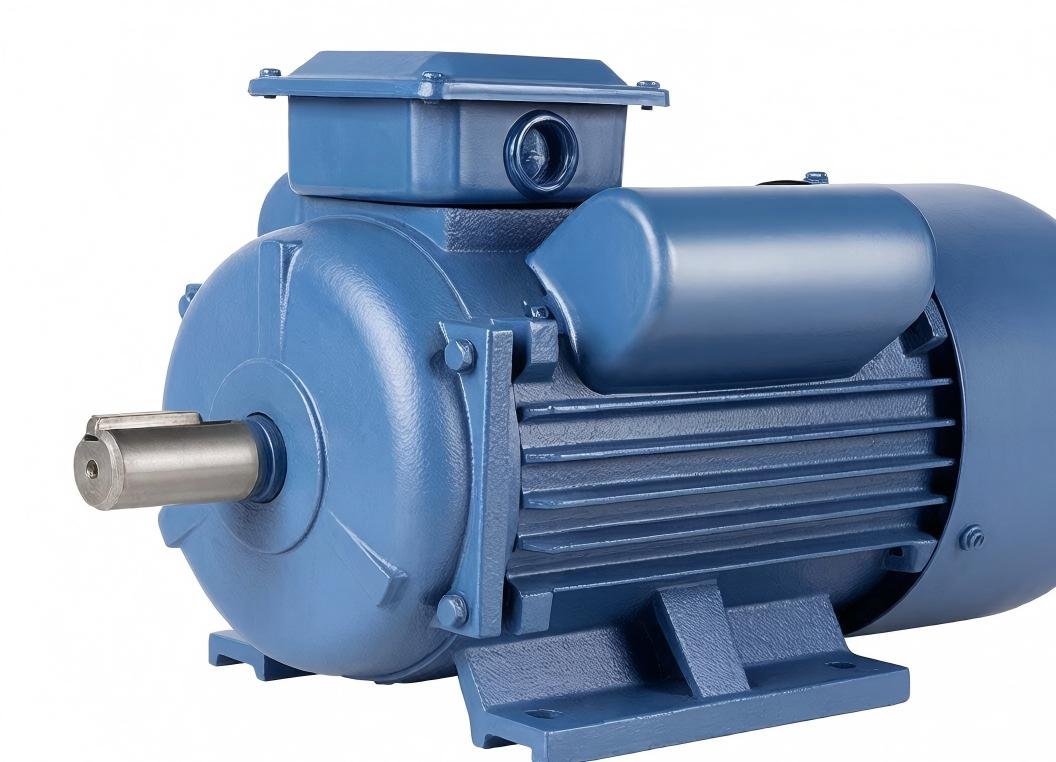

Pure Copper Core Motor
100% pure copper windings deliver superior conductivity, lower heat generation, and longer service life compared to aluminum-wound alternatives. Provides consistent power output under heavy loads with reduced energy consumption.

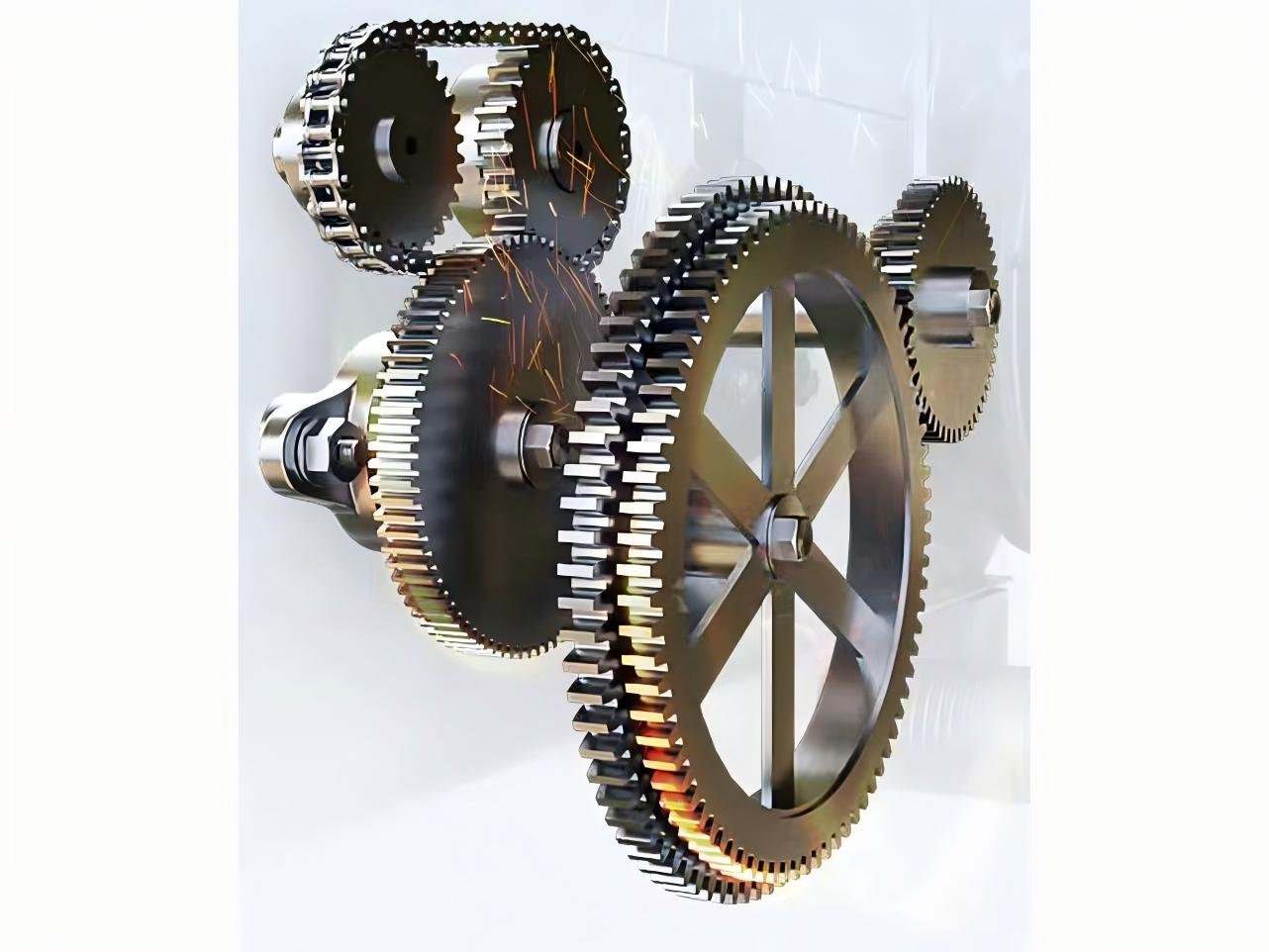

Quenched Forged Gears
Forged from high-carbon steel and quenched for maximum surface hardness. The precision-machined teeth ensure smooth power transmission with minimal wear, extending the gearbox service life significantly.
ApplicationReal-world usage across crops and settings
Applicable Crops
Corn stalks, wheat straw, rice straw, sorghum, alfalfa, sweet potato vines, peanut vines, and cotton stalks.
Cutting Effect
Uniform cut length with soft, kneaded texture. Improved palatability leads to better feed intake and digestion for livestock.

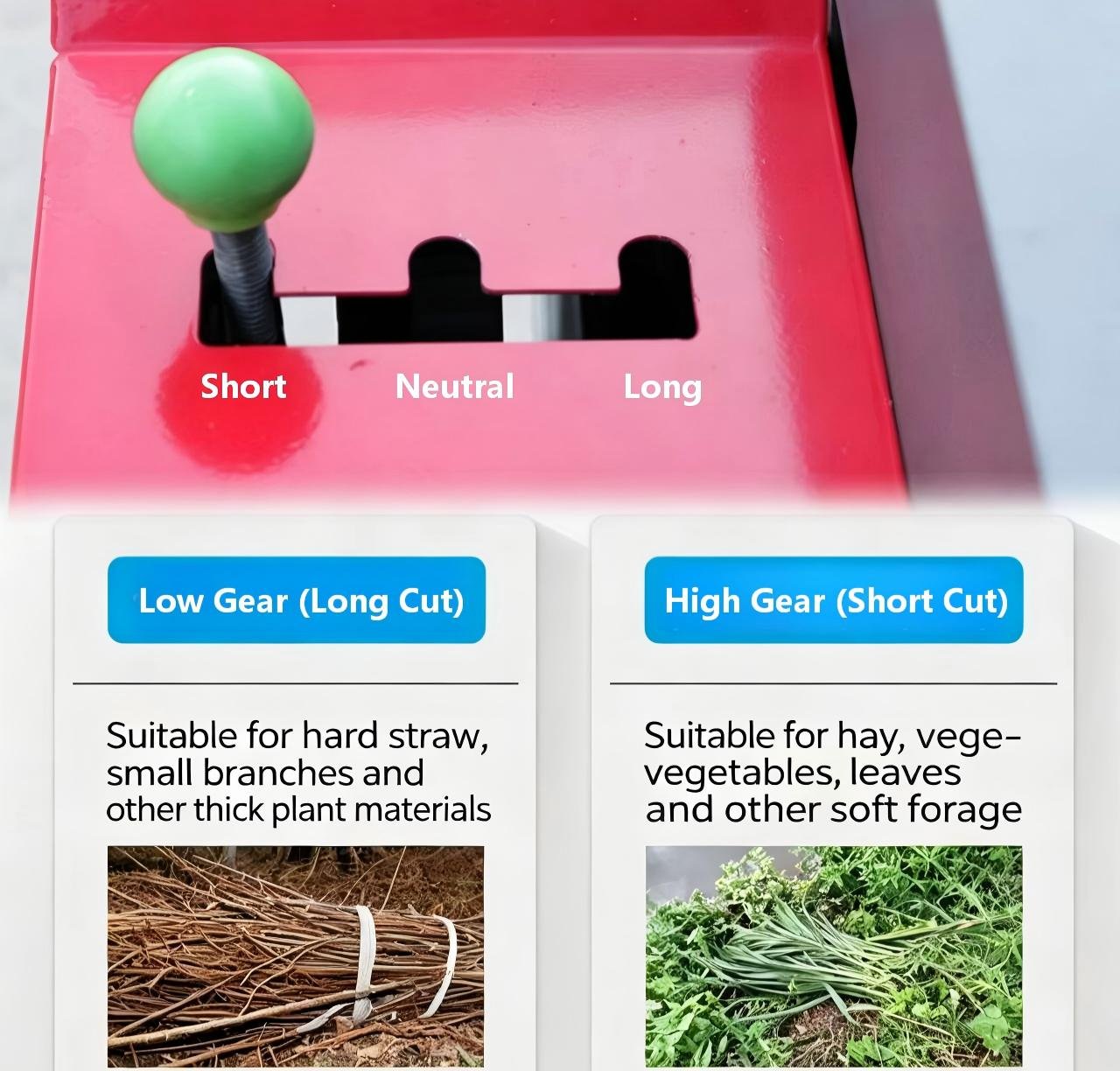

Gear Shift Positions
Easy gear shift lever lets operators select cutting length from 10mm to 30mm. Clear position markers for quick adjustment.

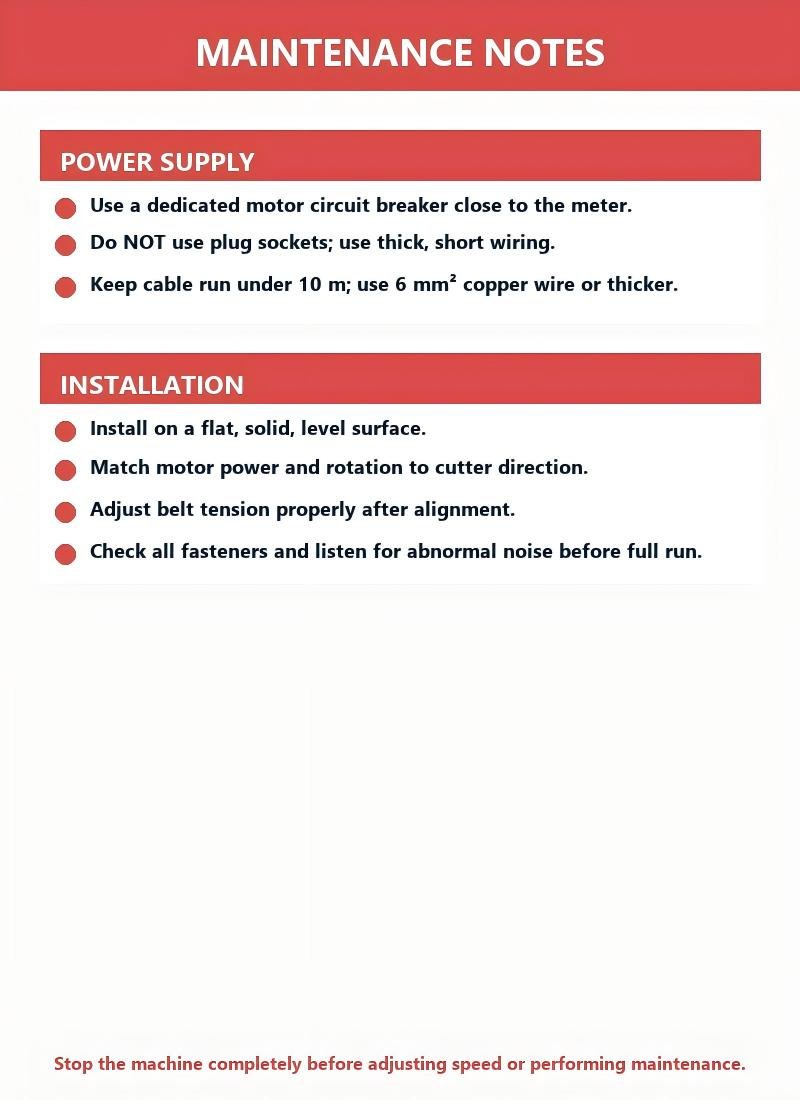

Maintenance & Installation GuideSafe wiring, setup, and daily care instructions
Tip: Right-click the image and open in a new tab to view the full-resolution instruction sheet.
Complete Maintenance & Installation Instructions
This guide covers motor wiring safety, dedicated circuit breaker requirements, cable sizing, and proper installation steps. Following these instructions ensures safe operation and extends the service life of your fodder cutter machine.
How the Chaff Cutter Works
Simple four-step process from raw forage to ready-to-feed chopped material.
Load Forage
Place corn stalks, straw, or grass onto the feeding table. No pre-cutting needed.
Feeding Roller
The geared feeding roller grips the forage and feeds it into the cutting chamber at a steady rate.
Blade Cutting
High-speed rotating blades chop the forage into uniform pieces at your pre-set length.
Collect Feed
Chopped feed is discharged through the outlet chute into bags or collection area.
Frequently Asked Questions
Common questions about the Sunto chaff cutter — answered.
Ready to Upgrade Your Feed Processing?
Get a factory-direct quote on the Sunto 9ZR Series chaff cutter. Fast shipping to South America, Africa, Middle East, and Southeast Asia.
