Mobile Grain Dryer for Paddy, Corn & Wheat
2T-10T batch capacity mobile grain dryer with 20-200 tons/day output. Portable design, multi-fuel heat source, and intelligent temperature control for farms, cooperatives and grain stations.
Product Overview
The Sunto mobile grain dryer dries paddy, corn, wheat and more right at the farm or grain station. Its wheeled chassis, multiple heat-source options and batch drying design cut harvest losses and improve grain quality.
Why Choose the Sunto Mobile Grain Dryer
No need for fixed drying towers. Move the dryer to where the harvest is, set the temperature for your crop, and dry grain in controlled batches to safe moisture levels.
- Portable design: wheeled chassis with support legs for easy field-to-farm transport.
- Multi-fuel heating: coal, wood, biomass pellet or diesel burner to match local fuel costs.
- Intelligent control: touch-screen panel sets temperature and drying time automatically.
- Wide application: rice, corn, wheat, sorghum, millet, soybean, rapeseed, peanut, pepper.
Technical Specifications
Factory-verified parameters for Sunto mobile grain dryers. Choose the model that matches your daily harvest volume and fuel preference.
| Parameter | 2T | 4T | 6T | 8T | 10T | Dual 6T | Dual 8T | Dual 10T |
|---|---|---|---|---|---|---|---|---|
| Daily output (24h) | 20 T | 40 T | 60 T | 80 T | 100 T | 120 T | 160 T | 200 T |
| Induced draft fan | 1.1 kW | 1.1 kW | 1.5 kW | 1.5 kW | 2.2 kW | 0.75 kW | 0.75 kW | 0.75 kW |
| Circulating feeder | 5.5 kW | 7.5 kW | 7.5 kW | 7.51 kW | 7.51 kW | 7.51 kW | 7.5 kW | 7.5 kW |
| Hot air conveyor | 5.5 kW | 7.5 kW | 7.5 kW | 11 kW | 11 kW | 7.5 kW | 7.5 kW | 11 kW |
| Corn drying temp | 100-130°C | 100-130°C | 100-130°C | 100-130°C | 100-130°C | 100-130°C | 100-130°C | 100-130°C |
| Wheat drying temp | 90-110°C | 90-110°C | 90-110°C | 90-110°C | 90-110°C | 90-110°C | 90-110°C | 90-110°C |
| Rice / paddy drying temp | 45-60°C | 45-60°C | 45-60°C | 45-60°C | 45-60°C | 45-60°C | 45-60°C | 45-60°C |
| Seed drying temp (all crops) | 43.4°C | 43.4°C | 43.4°C | 43.4°C | 43.4°C | 43.4°C | 43.4°C | 43.4°C |
| Heat source options | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel | Coal / Wood / Biomass / Diesel |
* T = batch capacity in tons. Daily output is based on continuous 24-hour operation. Motor power, voltage and heat source can be customized. Contact us for exact configuration.

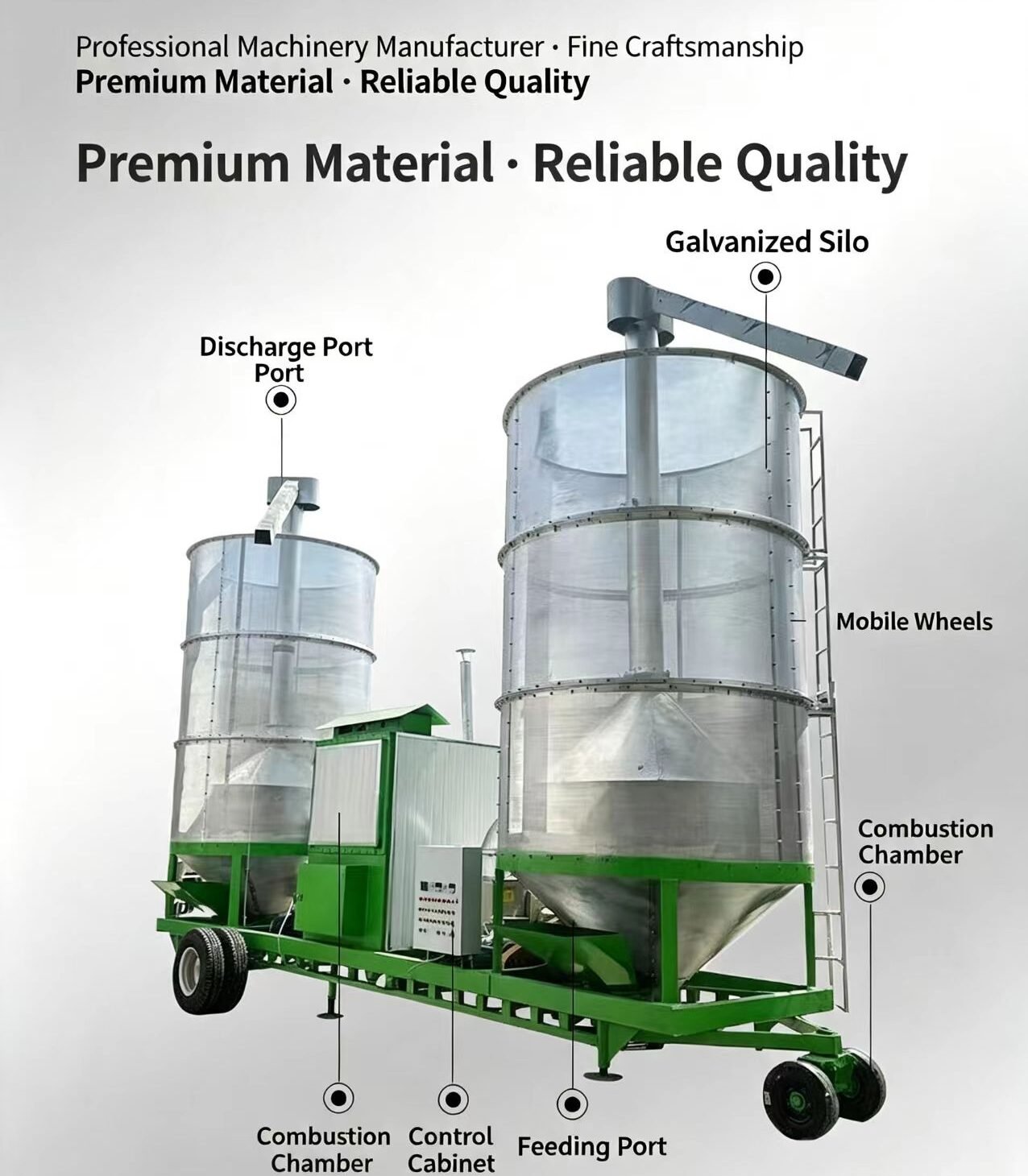

Product Structure
Clear layout of the main components: galvanized silo, combustion chamber, control cabinet, feeding port, discharge port and mobile wheels.
Galvanized Silo · Combustion Chamber · Control Cabinet · Feeding Port · Discharge Port · Mobile Wheels

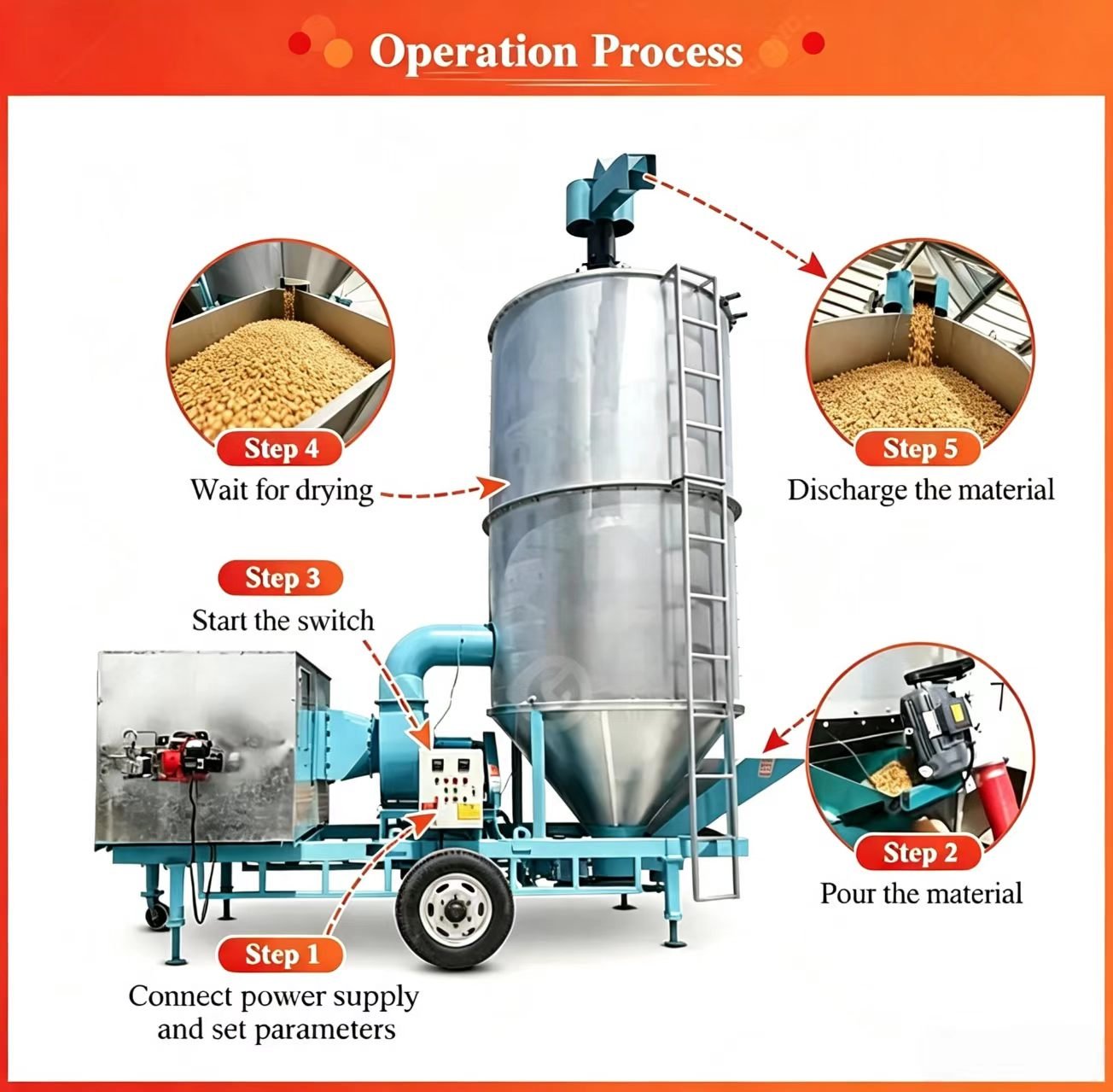

Operation Process
Five simple steps from power connection to discharged dry grain. One operator can manage the whole batch drying cycle.

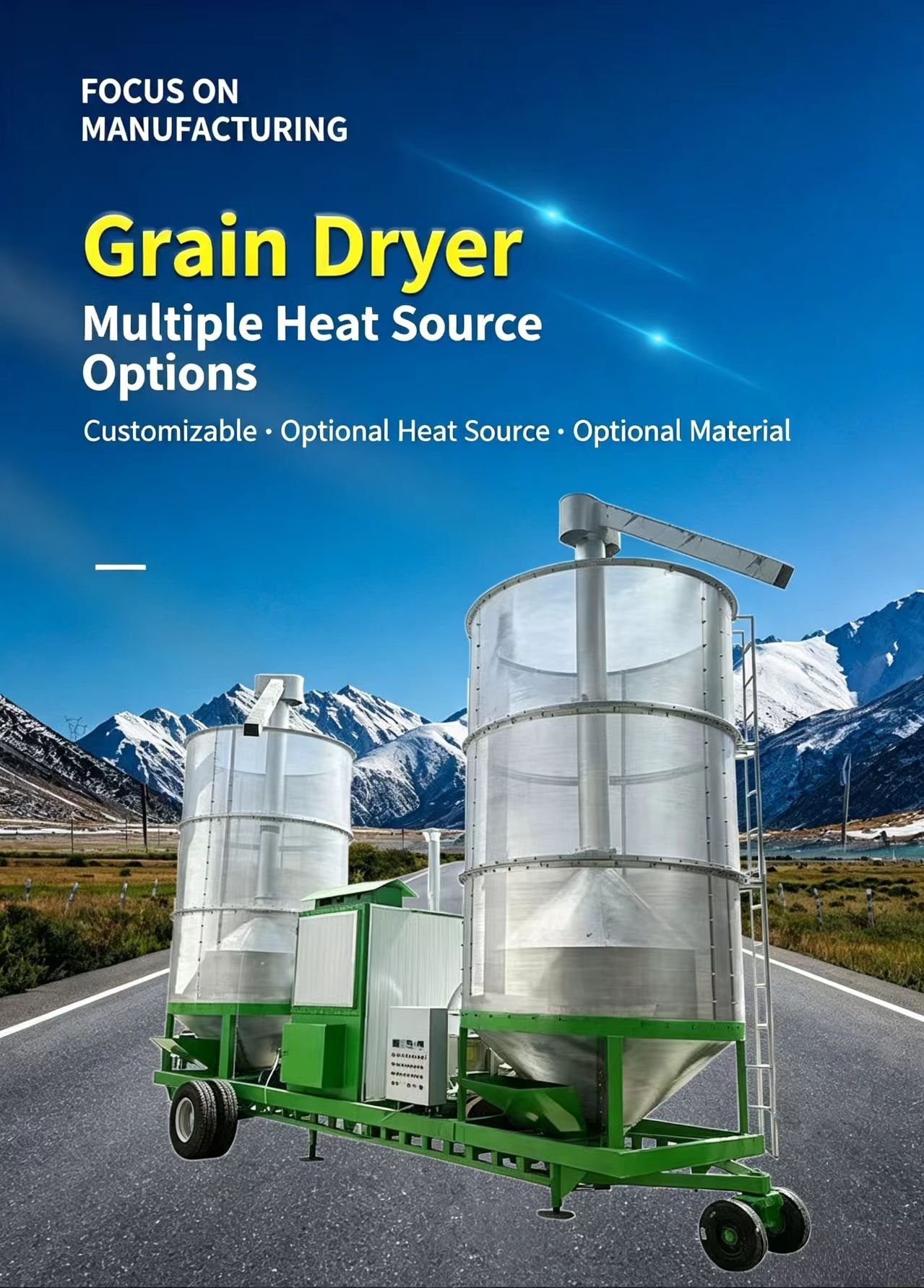

Mobile Grain Dryer Design
Galvanized silo, green powder-coated chassis and multiple heat-source compatibility built for outdoor farm use.

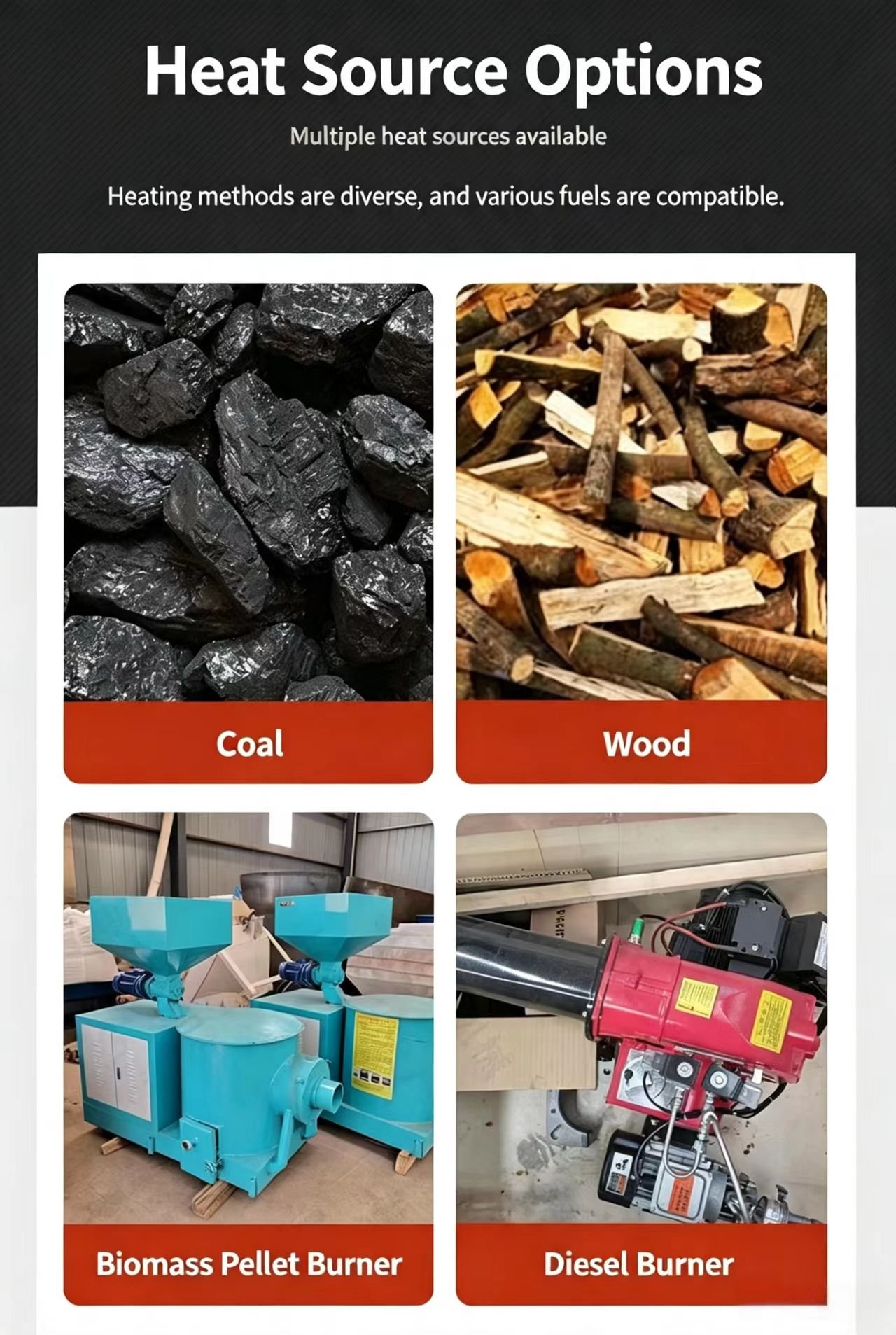

Optional Heat Sources
Choose the fuel that fits your region and budget: coal, wood, biomass pellet burner or diesel burner.
Coal · Wood · Biomass Pellet Burner · Diesel Burner
Applicable Crops
One dryer handles multiple grains and oilseeds with temperature settings optimized for each crop type.
Wheat · Paddy · Corn · Sorghum · Millet · Soybean · Rapeseed · Peanut · Pepper

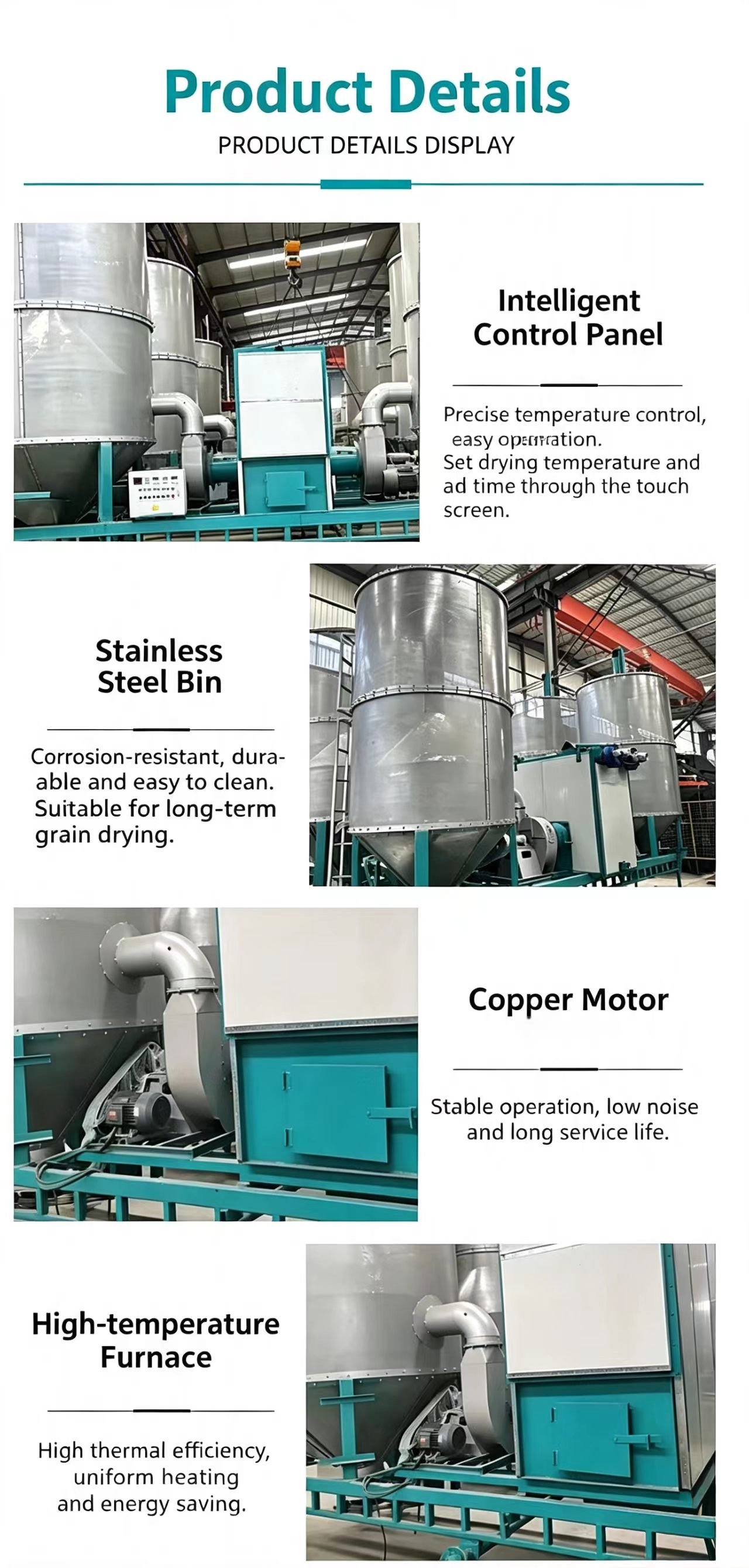

Product Advantages
Built with premium material, reliable quality and intelligent controls for long-term grain drying performance.

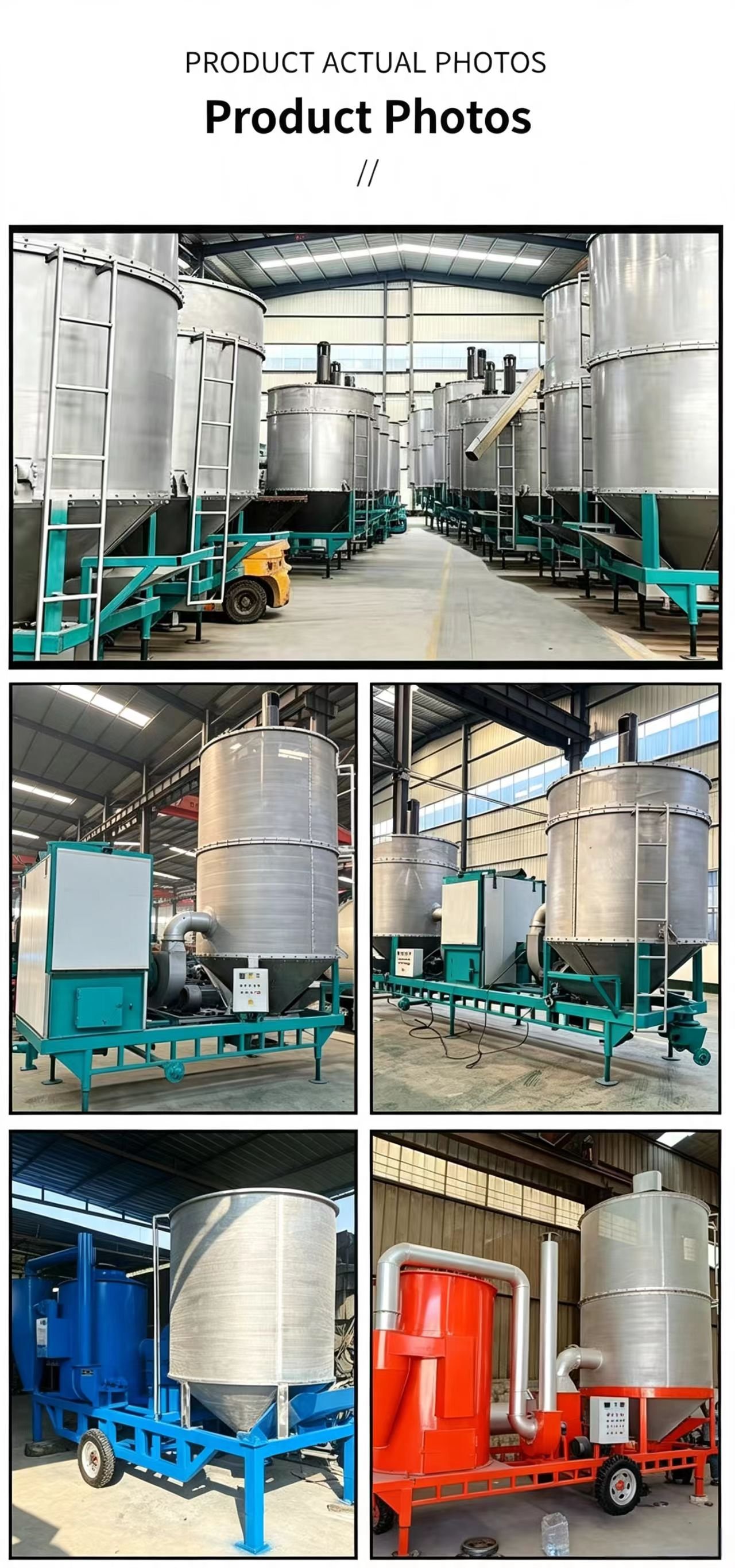

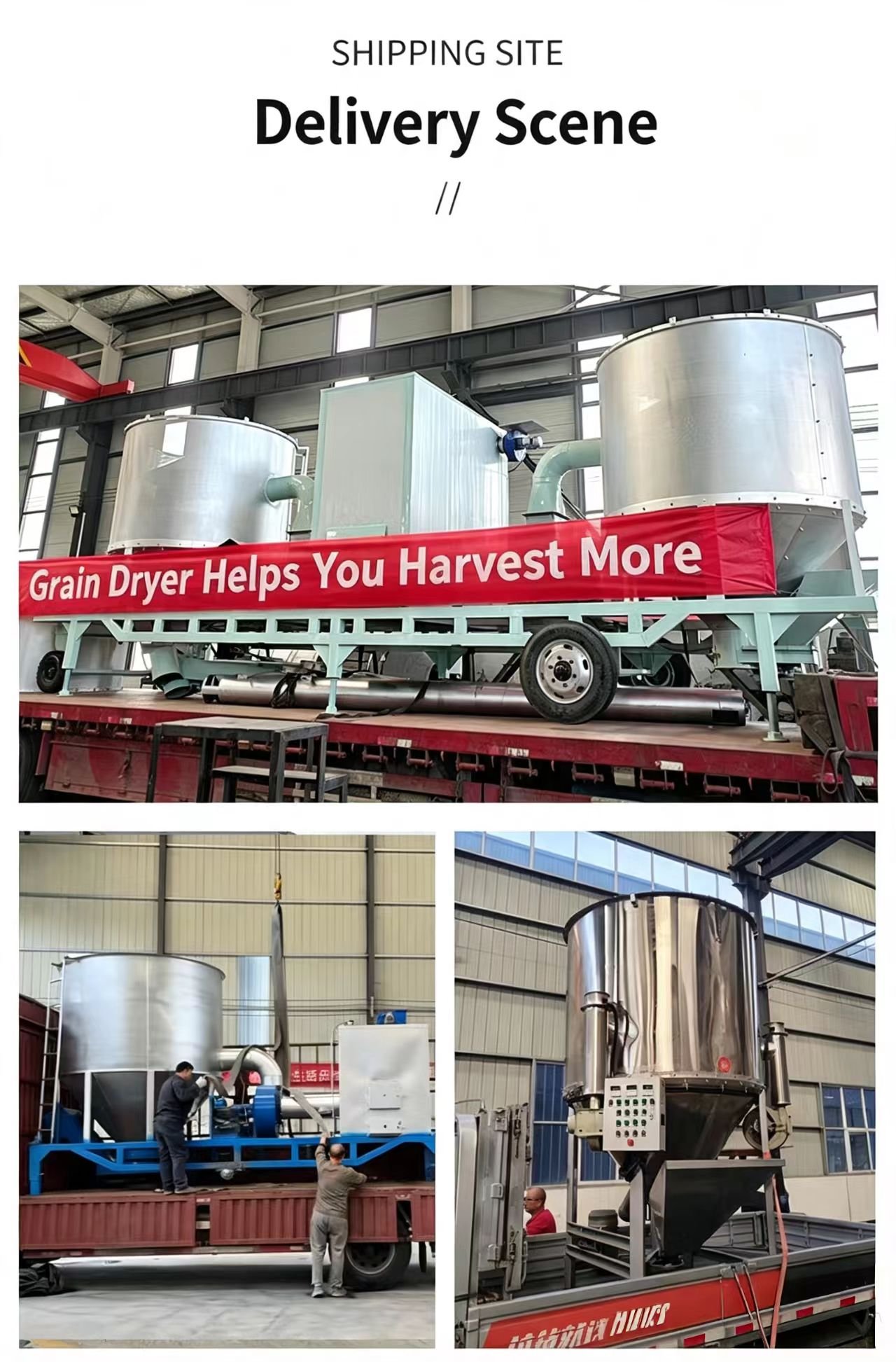

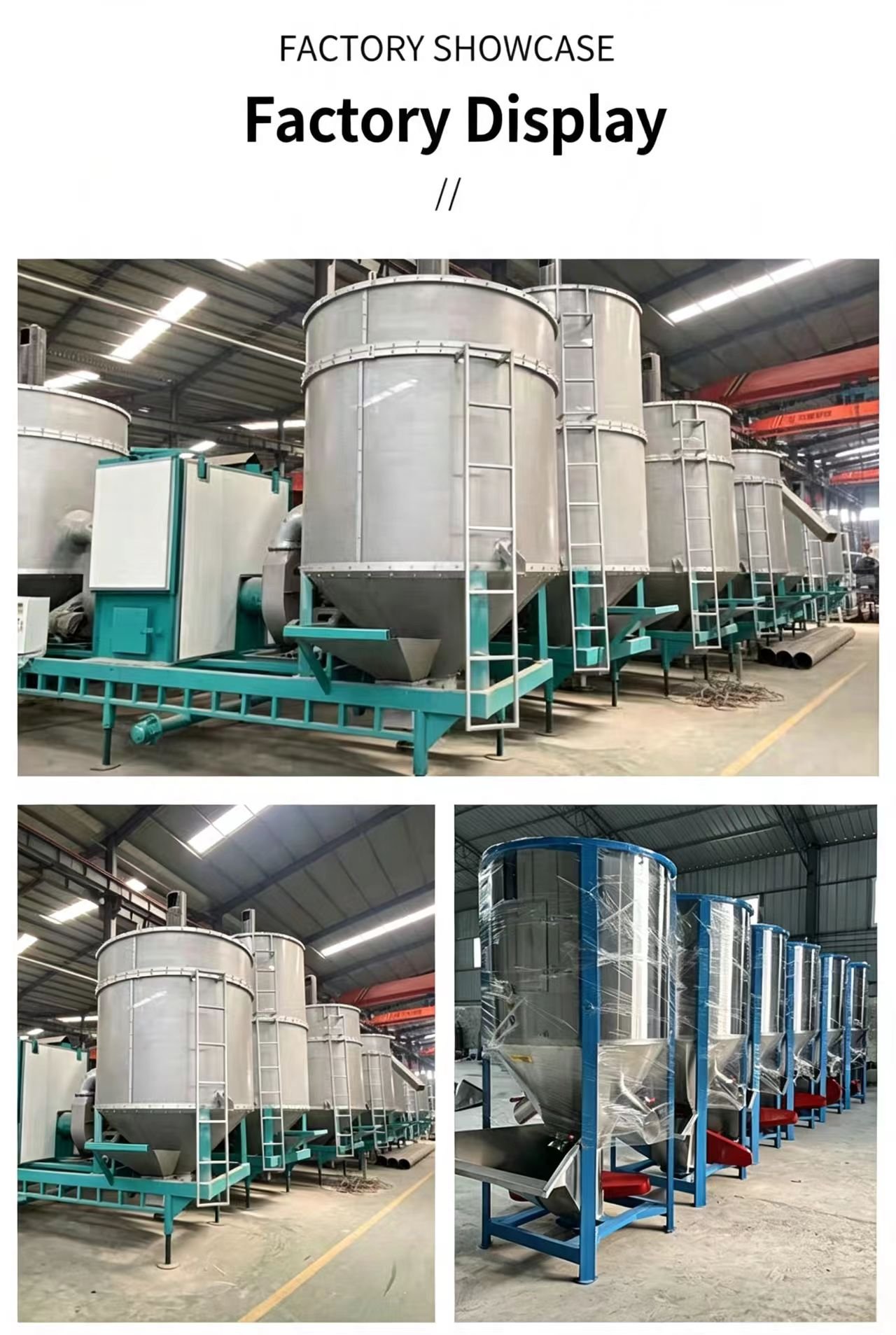

Delivery, Factory & Product Photos
Real photos from our shipping site, factory showcase and product stock. Sunto grain dryers are shipped worldwide from Qingdao, China.
Frequently Asked Questions
Ready to Protect Your Harvest with Mobile Drying?
Get a factory-direct quote for the Sunto mobile grain dryer. We ship 2T-10T models worldwide from Qingdao, China.
