Vertical TMR Feed Mixer 5 m³ – 30 m³ Cattle Feed Mixer Wagon

Sunto vertical TMR mixer cuts, mixes and distributes total mixed rations for dairy and beef cattle. Trailer-mounted, hydraulic discharge, electronic weighing — one batch replaces the work of 10+ laborers.

5-30 m³ Capacity

Hydraulic Discharge

Electronic Weighing

Request a Quote View Specifications

Sunto vertical TMR feed mixer machine full side view showing green mixing tank, red hydraulic discharge doors, electric control cabinet, safety ladder and motor

20+ Years Experience

5-30

Capacity (m³)

~30 min

Batch Cycle

80-200+

Tractor HP

1 = 10

Labor Saving

What Is a Vertical TMR Feed Mixer?

A vertical TMR feed mixer is a farm machine that loads, chops and blends silage, hay, straw and concentrates inside a vertical tub. The vertical auger lifts material from the bottom, cuts it against stationary knives and drops it back down for a uniform total mixed ration.

Less loading height than horizontal mixers — easier to fill with loaders and bales.
Round-bale friendly vertical tub accepts whole bales and long-fiber forage.
Hydraulic discharge with single or dual outlets for fast, controlled unloading.
Electronic weighing system proportions each ingredient for balanced nutrition.

Get Custom Quote

Core Advantages

Built for daily farm use. Every design choice targets lower labor, longer life and more consistent rations.

Reinforced alloy-steel tub

High-alloy auger blades

~30 min batch cycle

Electronic weighing system

One-person operation

Round-bale friendly

Technical Specifications

Sunto vertical TMR feed mixer parameters verified from factory data sheet. Capacities and power requirements are measured under standard working conditions.

Model	Capacity	Dimensions (mm)	Weight	Main Shaft Speed	Blades	Plate Thickness
7 m³	3 T/h	4,000×2,000×2,600	3,300 kg	20 rpm	7 crescent blades	16 mm base / 6 mm wall / 16 mm auger
9 m³	5 T/h	4,400×2,400×2,650	3,300 kg	26 rpm	7 large + 12 small	16 mm base / 6 mm wall / 16 mm auger
12 m³	7 T/h	4,400×2,400×2,850	3,300 kg	26 rpm	14 small + 8 large	16 mm base / 6 mm wall / 16 mm auger
14 m³	4-10 T/h	5,750×2,350×2,650	4,300 kg	23 rpm	14 large + 22 small	16 mm base / 6 mm wall / 16 mm auger
16 m³	4-10 T/h	6,700×2,300×2,500	5,000 kg	23 rpm	14 oval blades	20 mm base / 8 mm wall / 12 mm auger
20 m³	12 T/h	6,700×2,300×2,800	5,500 kg	23 rpm	16 large + 28 small	20 mm base / 8 mm wall / 12 mm auger
24 m³	12 T/h	6,700×2,300×2,800	5,500 kg	23 rpm	16 large + 28 small	20 mm base / 8 mm wall / 12 mm auger
30 m³	18 T/h	9,500×2,350×2,800	8,000 kg	23 rpm	24 large + 42 small	20 mm base / 8 mm wall / 12 mm auger

* Parameters are for reference only. Custom configurations, voltages and trailer hitches available upon request.

Machine Structure

Key components of the Sunto vertical TMR feed mixer: heavy-duty mixing drum, hydraulic system, discharge conveyor and trailer hitch.

8 Key Components

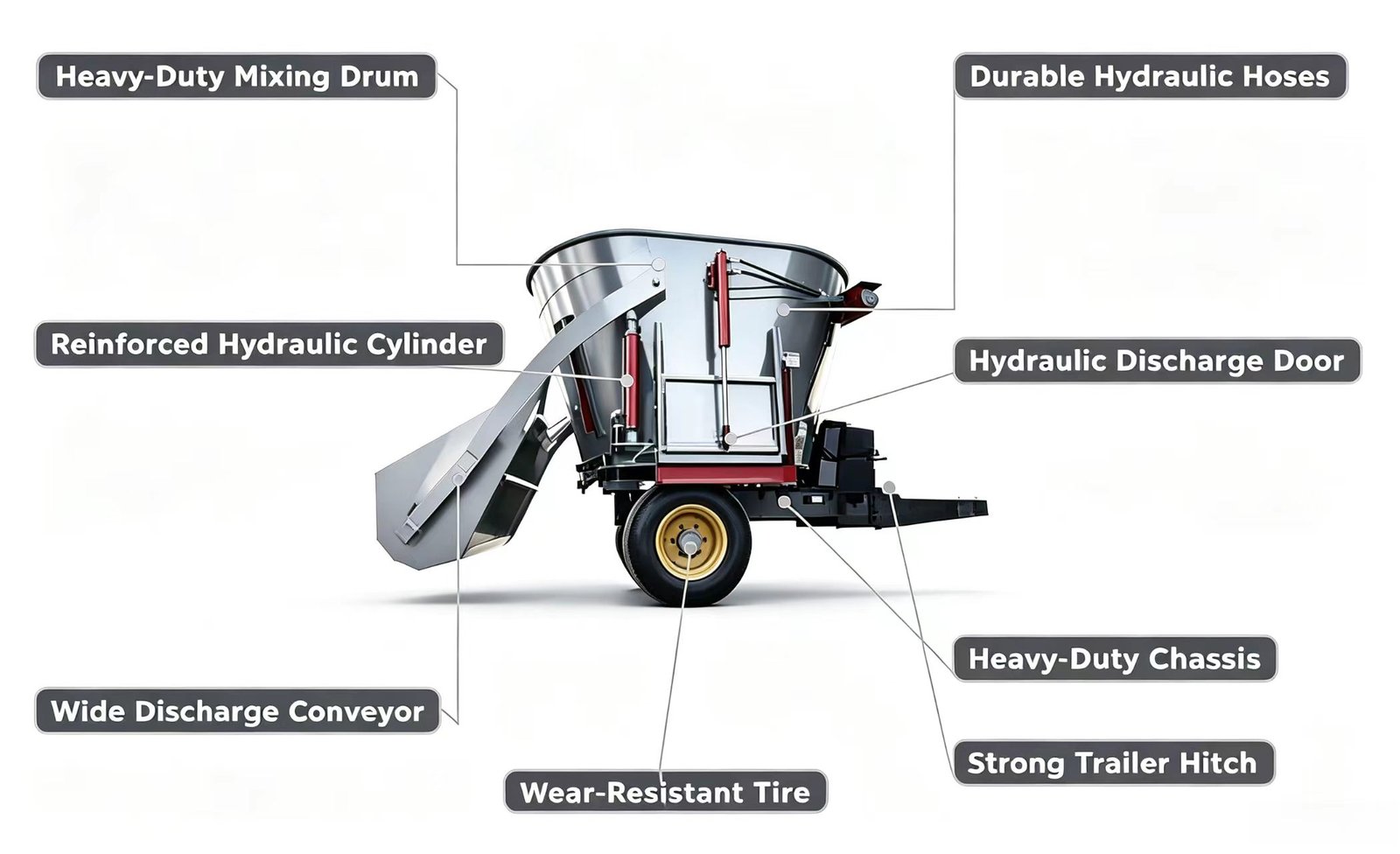

Sunto vertical TMR feed mixer structure diagram showing heavy-duty mixing drum, durable hydraulic hoses, reinforced hydraulic cylinder, hydraulic discharge door, wide discharge conveyor, heavy-duty chassis, wear-resistant tire and strong trailer hitch

Heavy-duty mixing drum · Durable hydraulic hoses · Reinforced hydraulic cylinder · Hydraulic discharge door · Wide discharge conveyor · Heavy-duty chassis · Wear-resistant tire · Strong trailer hitch

Product Details

Five engineered details that improve cutting, mixing and long-term reliability.

5 Key Features

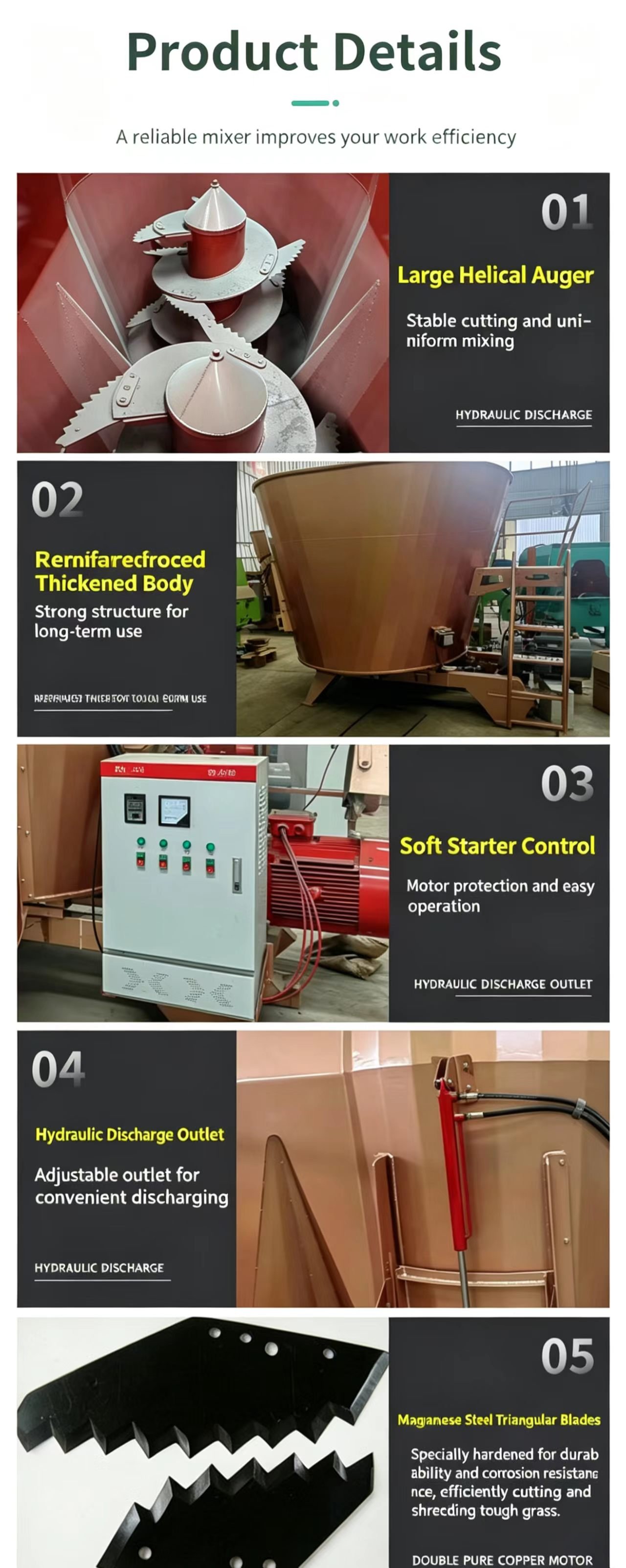

Large helical auger, reinforced tank body, soft starter control, hydraulic discharge outlet and manganese steel triangular blades.

Handle Various Raw Materials

Cut, knead and blend a wide range of forages and roughage without damaging fibers.

Applicable Feed Types

Sunto TMR feed mixer handling corn stalk, alfalfa hay, silage, peanut straw, sweet potato vine, distillers grains, soybean meal residue and concentrate feeds

Corn stalk · Alfalfa hay · Silage · Peanut straw · Sweet potato vine · Distillers grains · Soybean meal residue · Concentrate feeds

Farming Benefits

One machine solves multiple feeding problems — better nutrition, healthier animals and lower cost.

One Machine Solves Multiple Problems

Sunto TMR feed mixer benefits for cattle, sheep and dairy farms including balanced nutrition, dry matter intake, disease reduction, feed cost savings and labor savings

Meets nutritional requirements · Increases dry matter intake · Reduces metabolic disease · Saves feed cost · Saves labor time

Application Fields

Suitable for cattle, sheep, horses, donkeys, deer and pig farms of all sizes.

Multiple Farm Types

Sunto TMR feed mixer suitable for cattle farm, sheep farm, horse farm, donkey farm, deer farm and pig farm

Cattle farm · Sheep farm · Horse farm · Donkey farm · Deer farm · Pig farm

Real Machine Display

Three popular capacity options. Each model is built with the same heavy-duty standards scaled to farm size.

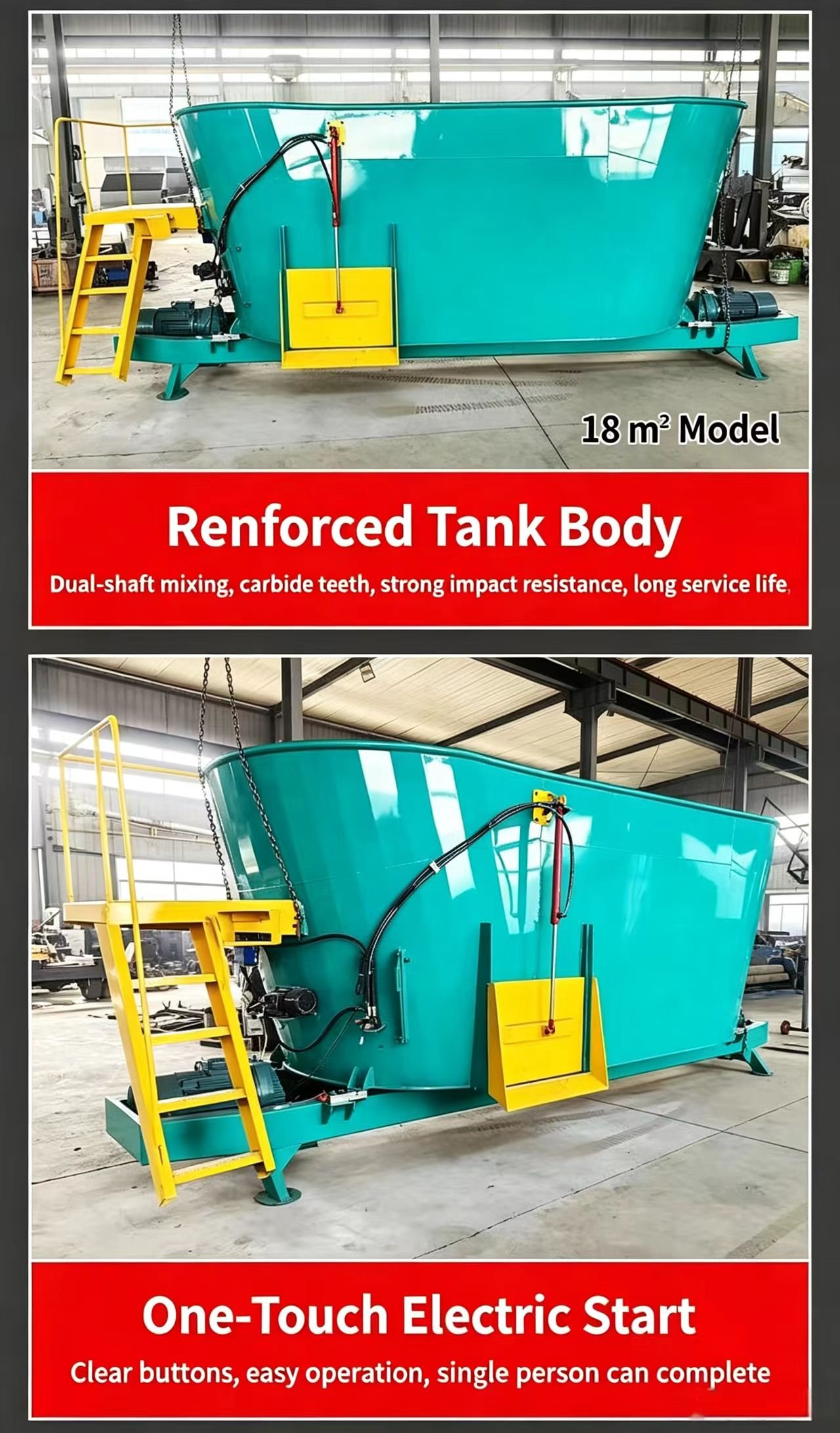

18 m³ Model

Reinforced Tank Body

Dual-shaft mixing, carbide teeth, strong impact resistance, long service life. One-touch electric start for single-operator use.

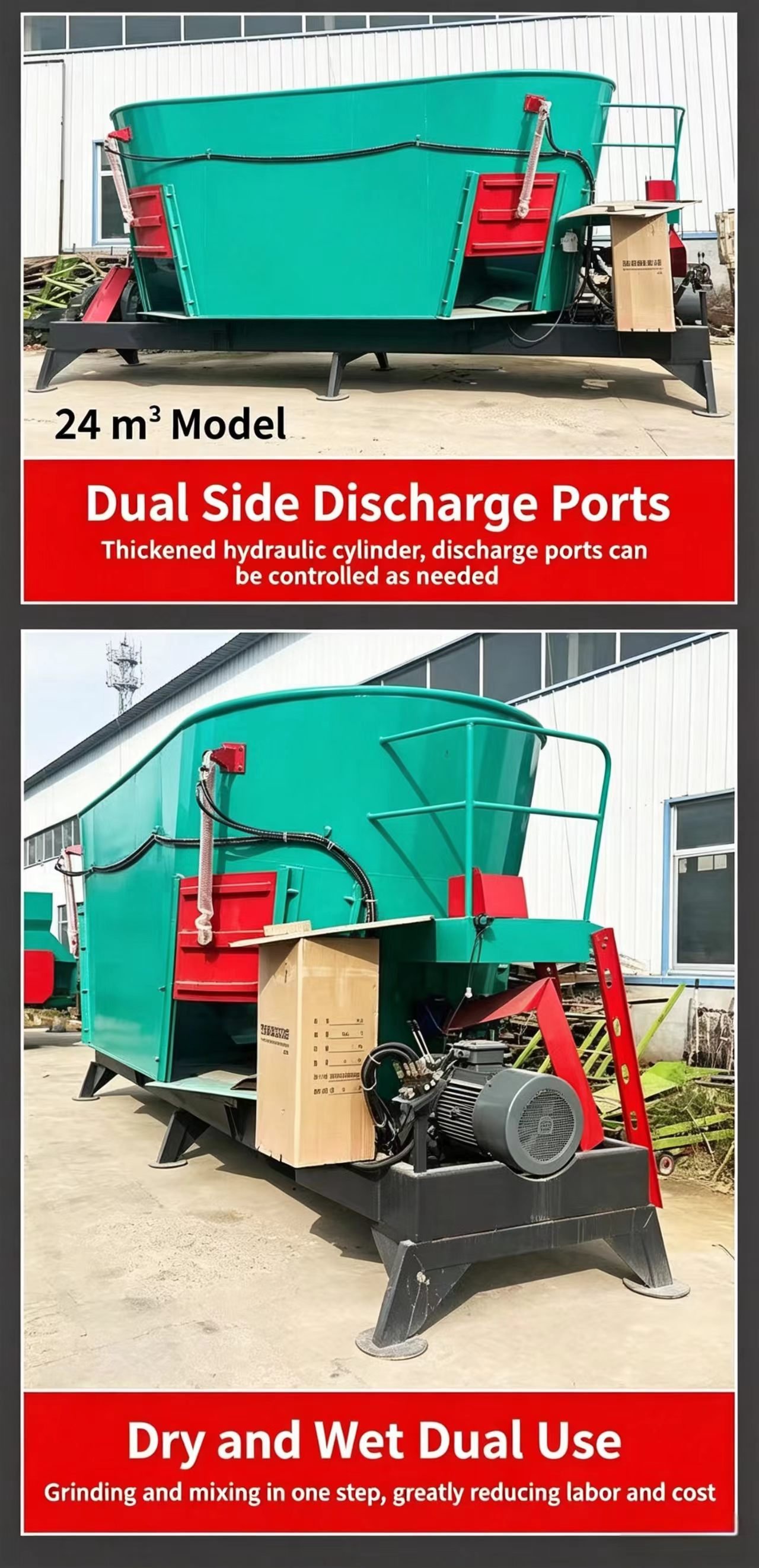

24 m³ Model

Dual Side Discharge Ports

Thickened hydraulic cylinder, discharge ports controlled as needed. Dry and wet dual use in one mixing step.

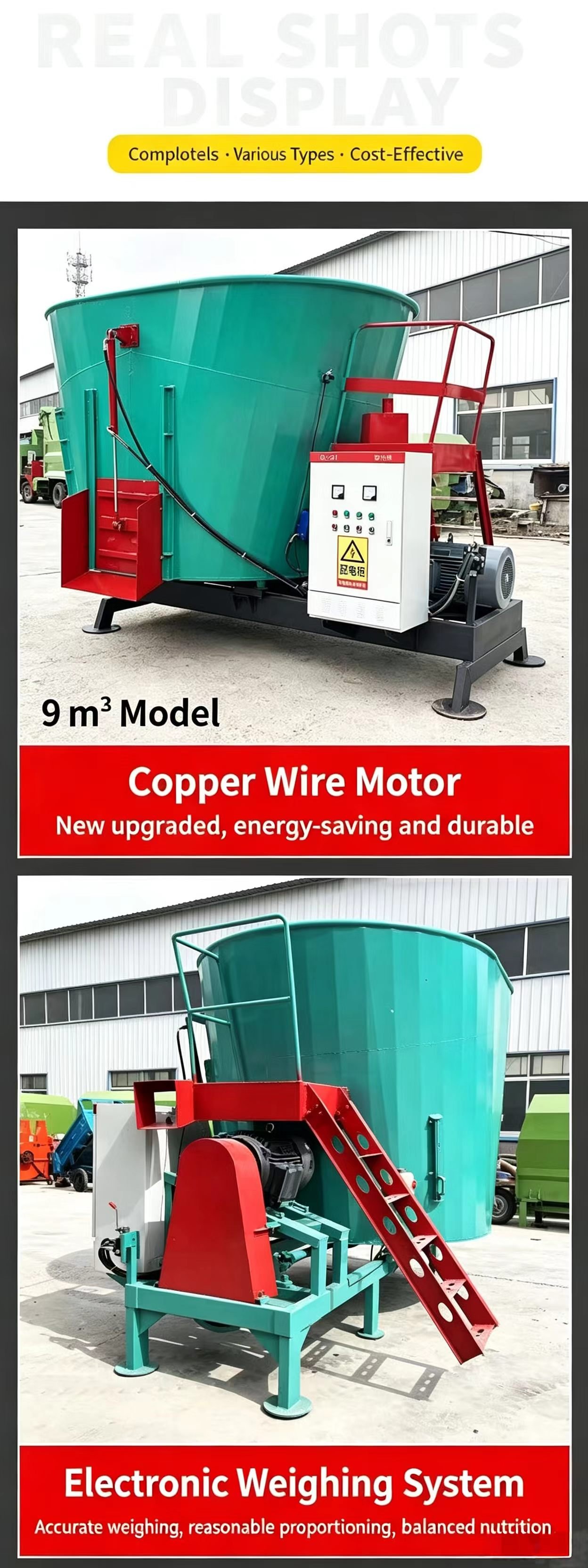

Sunto 9 cubic meter vertical TMR feed mixer with copper wire motor and electronic weighing system for accurate ration proportioning

9 m³ Model

Copper Motor & Weighing

Energy-saving copper wire motor plus electronic weighing system for accurate proportioning and balanced nutrition.

Labor Saving — Manual vs Machine Mixing

One worker with a Sunto vertical TMR mixer does the work of ten workers, with faster and more consistent results.

Sunto TMR feed mixer replaces ten workers, showing manual mixing versus fast machine mixing for feed preparation

Why Sunto Vertical TMR Mixer?

Alloy-Steel Tub Bottom

Thick alloy-steel base and auger blades resist wear in dusty, corrosive barn environments.

Fast Batch Cycle

Each load is cut and mixed in about 30 minutes, so one machine feeds hundreds of head per day.

Electronic Weighing

4 load cells and digital indicator help you weigh each ingredient and manage the feed bank accurately.

Factory-Direct Support

Sunto handles R&D, production, QC, shipping and after-sales with export experience across Africa, the Middle East and Southeast Asia.

Frequently Asked Questions

A vertical TMR feed mixer is a farm machine that loads, cuts and blends silage, hay, straw and concentrates inside a vertical tub. A vertical auger lifts material from the bottom, cuts it against stationary knives and drops it back down for a uniform total mixed ration. Vertical mixers need less loading height and handle round bales more easily than horizontal mixers.

Choose by herd size and daily feed volume. 7-9 m³ units suit small dairy farms and beef feedlots with 50-200 head. 12-16 m³ models fit medium farms and commercial feed plants. 20-30 m³ heavy-duty mixers are built for large feedlots and high-volume dairy operations. Sunto offers 5-30 m³ options with matching tractor power requirements.

Yes. The vertical tub gives ample room for loading whole round bales and large amounts of long-fiber feed. The auger cuts and pulls the bale down into the mixing chamber, so you do not need to pre-chop roughage. This is one reason vertical mixers are popular on small-to-medium cattle and sheep farms.

A typical batch cycle is about 30 minutes including loading, cutting, mixing and discharge. With a Sunto vertical TMR mixer, one operator can prepare rations that would normally require ten workers, significantly cutting labor cost and feeding time.

Ready to Cut Your Feed Labor?

Send us your farm size, tractor power and daily feed volume. We will recommend the right 5-30 m³ vertical TMR feed mixer and quote within 24 hours.
